Microflex Ecosystem

Audio For AV Conferencing

SUPERIOR PERFORMANCE. UNMATCHED AESTHETICS

Since their introduction, Microflex® Advance™ Networked Array Microphones have been the premier choice for audio in the most challenging environments. They capture voice naturally, fit harmoniously with the room’s appearance, and make it effortless to connect people for the world's leading enterprises. The industry-leading Microflex® Advance™ microphones have revolutionized versatile and elegant AV conferencing solutions that discreetly and precisely capture every word.

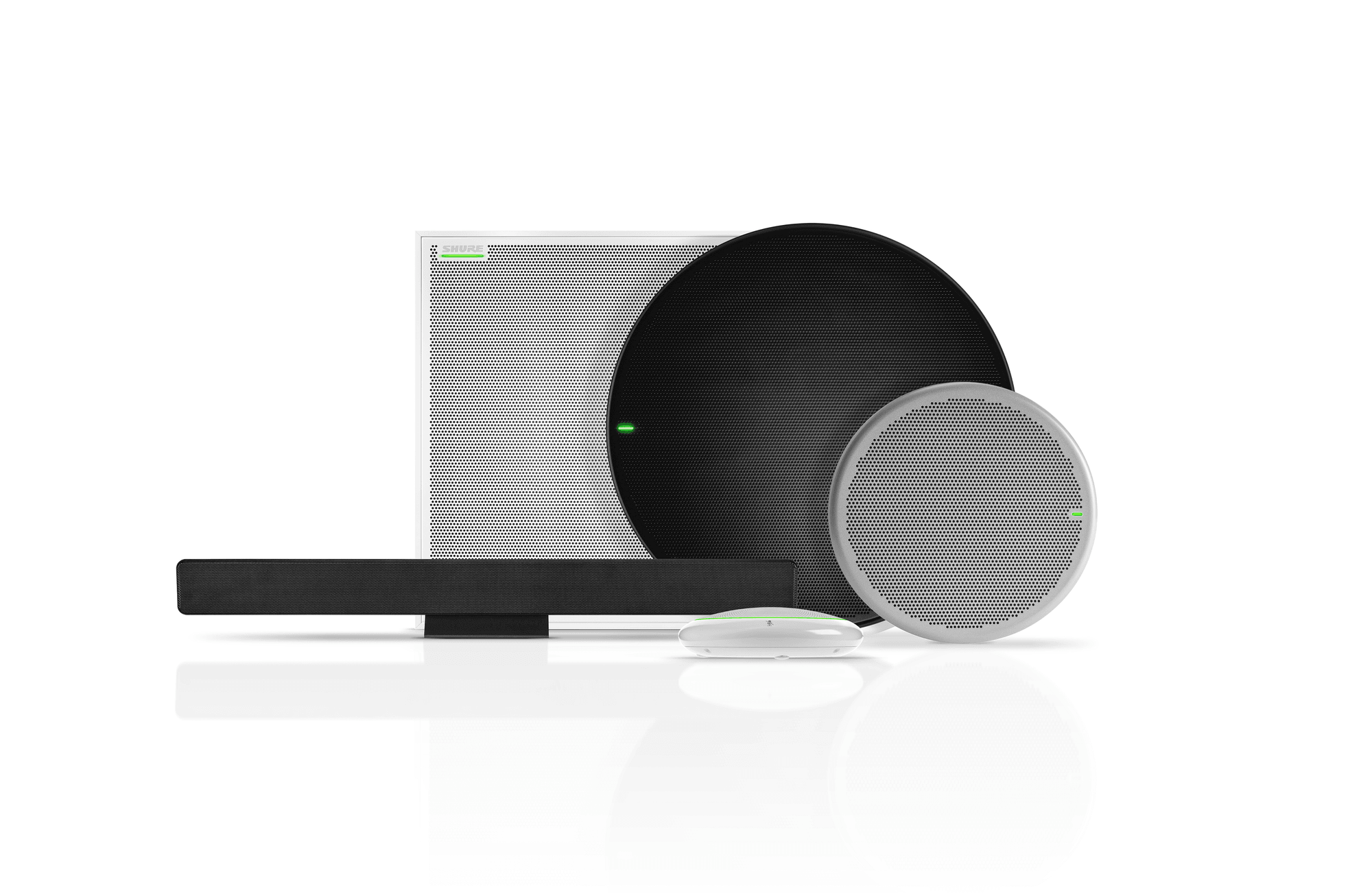

Explore the Ecosystem

MXA ARRAY TECHNOLOGY

PRECISE COVERAGE: Controlling which sounds are picked up is the foundation of good audio. The MXA920, MXA902, and MXA901 feature Automatic Coverage^TM technology that captures talkers in defined areas automatically. The MXA710 and MXA310 use Steerable Coverage^TM technology that allows pickup lobes to be aimed where needed.

POWERFUL DSP: Digital signal processing blends microphone signals into a harmonious mix. The MXA920, MXA902, MXA901, and MXA710 feature IntelliMix DSP that controls levels and eliminates noise and echo. The MXA310 includes automatic mixing and per-channel EQ for improved clarity.

FLEXIBLE NETWORKING: Digital audio, power, and control data use Dante or AES67 to coexist on the same network as enterprise applications. Command strings enable integration with third-party systems for camera tracking or room control.

The industry-leading Microflex® Advance™ microphones have revolutionized versatile and elegant AV conferencing solutions that discreetly and precisely capture every word.

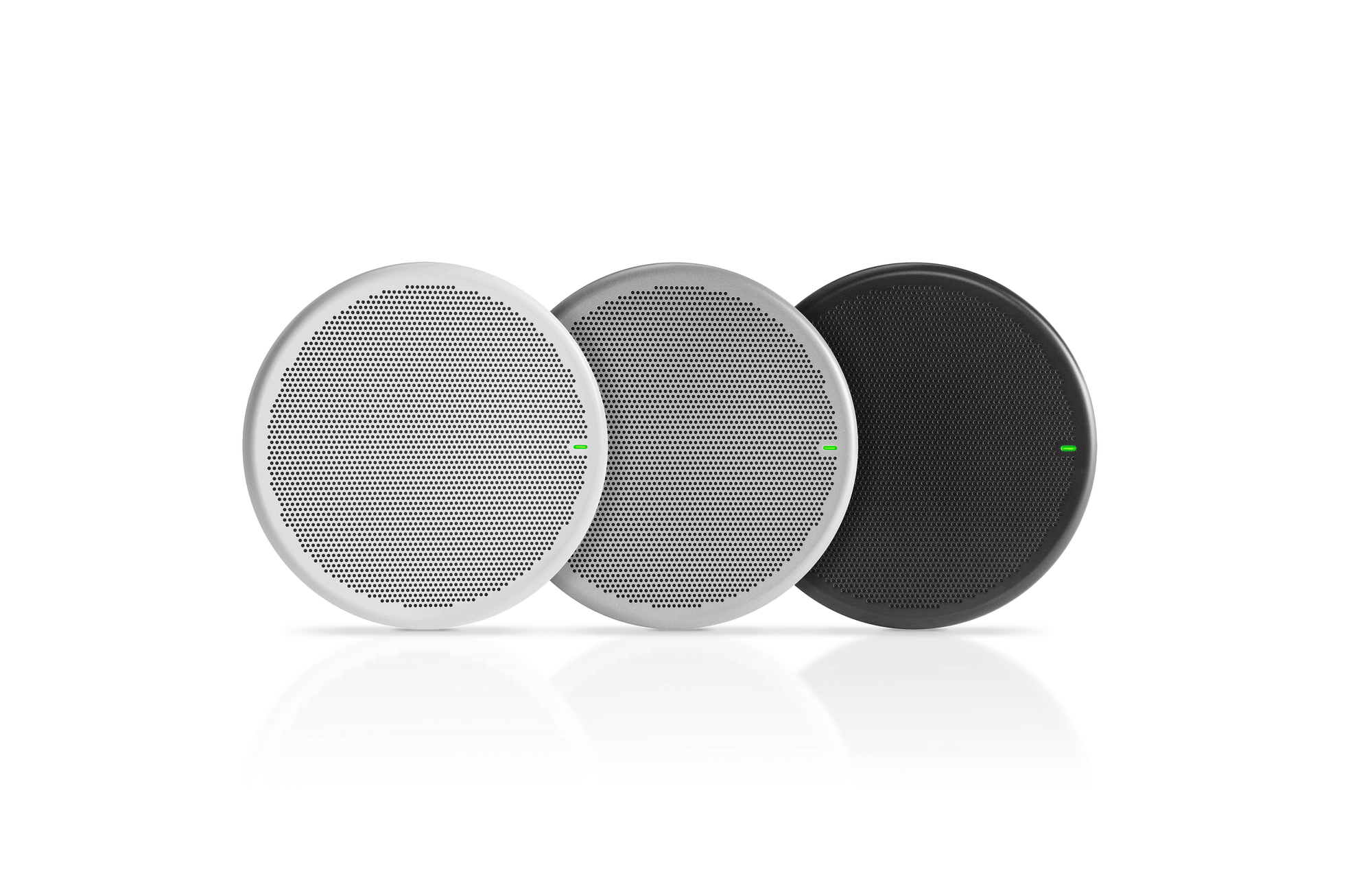

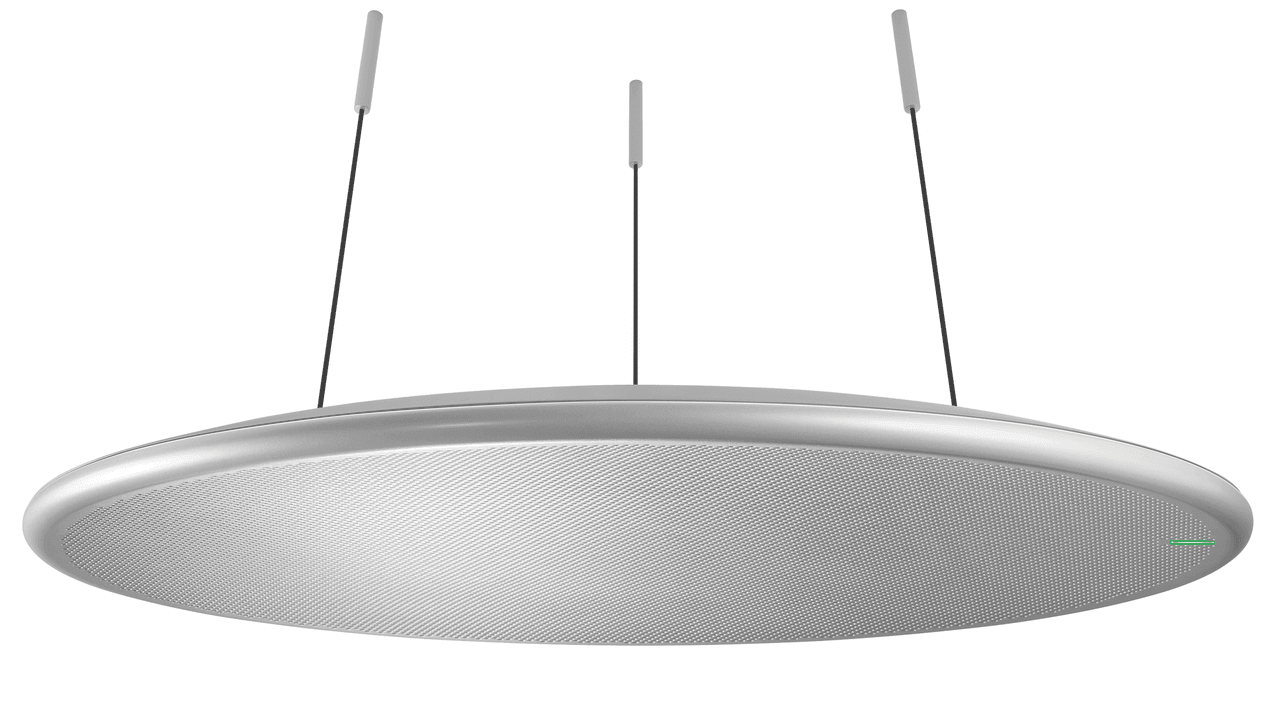

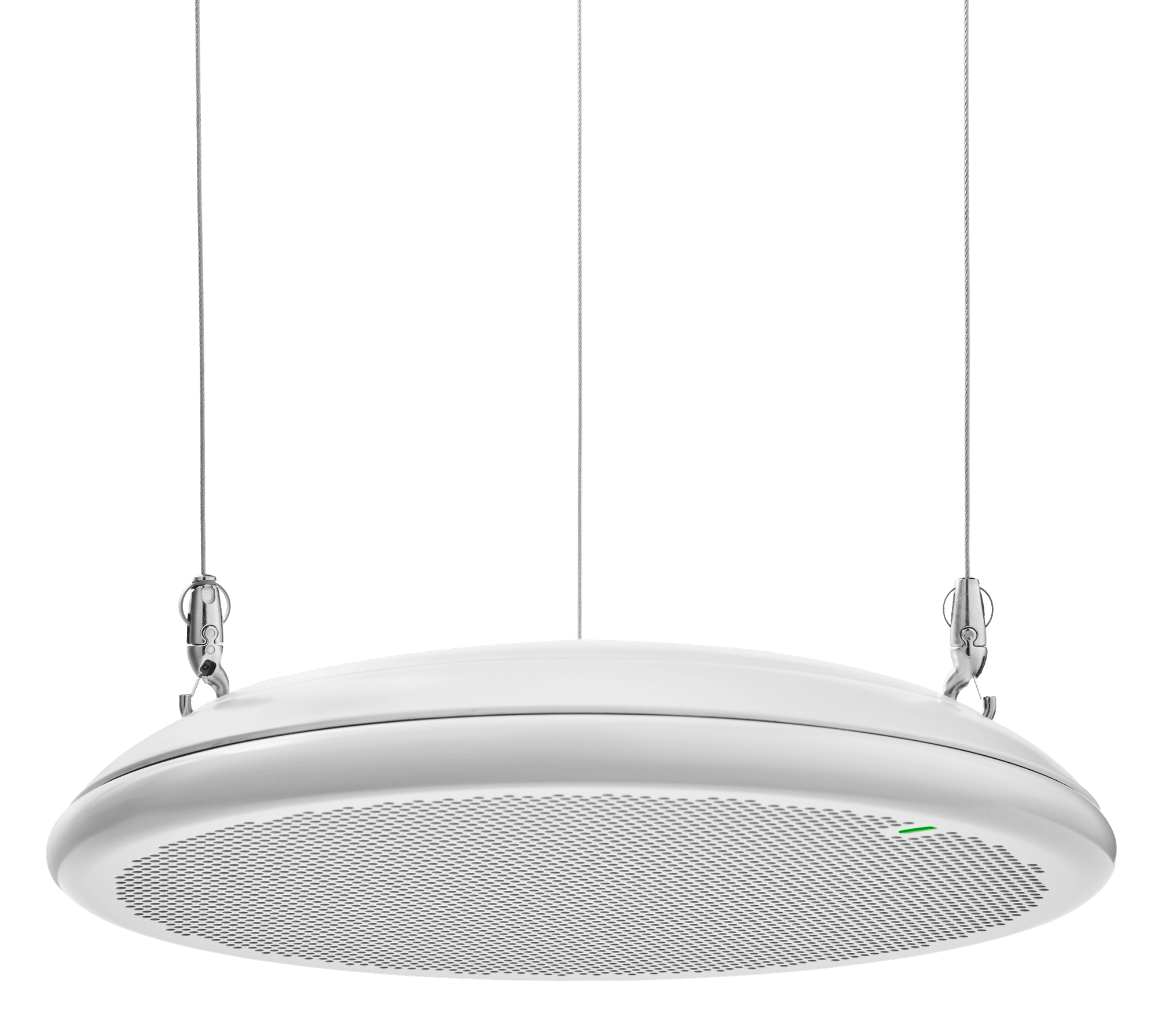

MXA901 Ceiling Array: A Sleeker Take On Tech

INTRODUCING THE NEW MXA901

Our sleekest ceiling array microphone yet, the MXA901 provides superb AV conferencing audio in a discreet and stylish 13.5-inch round form factor that complements any interior design.

A SLEEKER TAKE ON TECH:

The Microflex Advance MXA901 is the most discreet approach to AV conferencing audio for meeting rooms. Its compact and stylish round form factor complements any interior design without drawing attention. Choose from white, black, or aluminum finishes.

COVER EVERYONE:

Single Zone Automatic Coverage™ technology requires no setup and captures every talker in a 20 by 20 foot area out of the box. A variety of on-ceiling, in-ceiling, and suspended mounting options are available to suit different ceiling types.

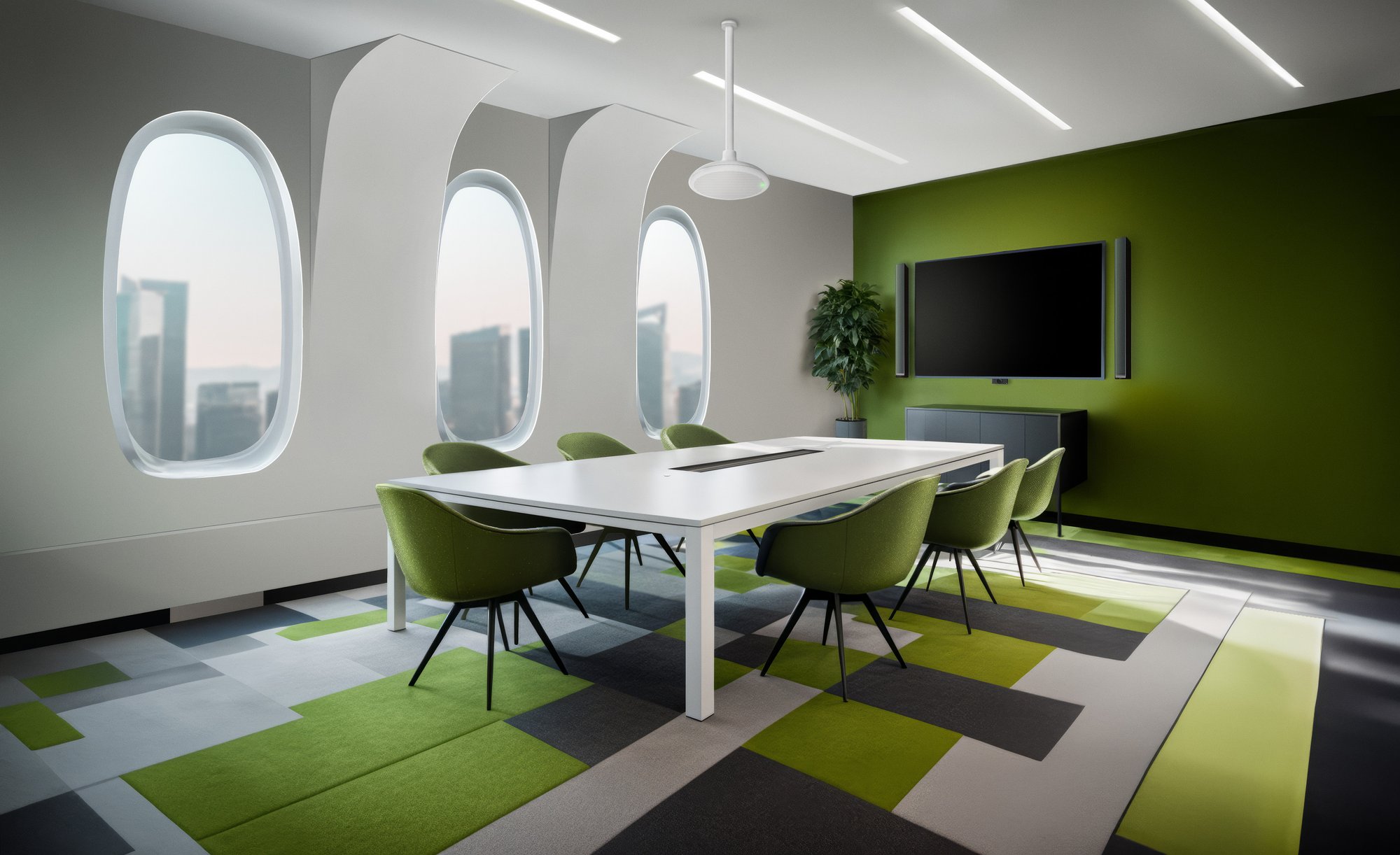

MXA901 in a medium-sized conference room

CANCEL THE CLUTTER:

Onboard IntelliMix® DSP includes echo-cancellation and noise reduction to eliminate annoying distractions. Automatic gain control adjusts talker levels so that everyone is heard clearly no matter where they sit. The built-in automatic mixer delivers a pristine audio mix to your favorite videoconferencing software.

MXA902 Ceiling Array: First of it's Kind, Kind of Amazing

ALL YOUR AUDIO. IN THE CEILING

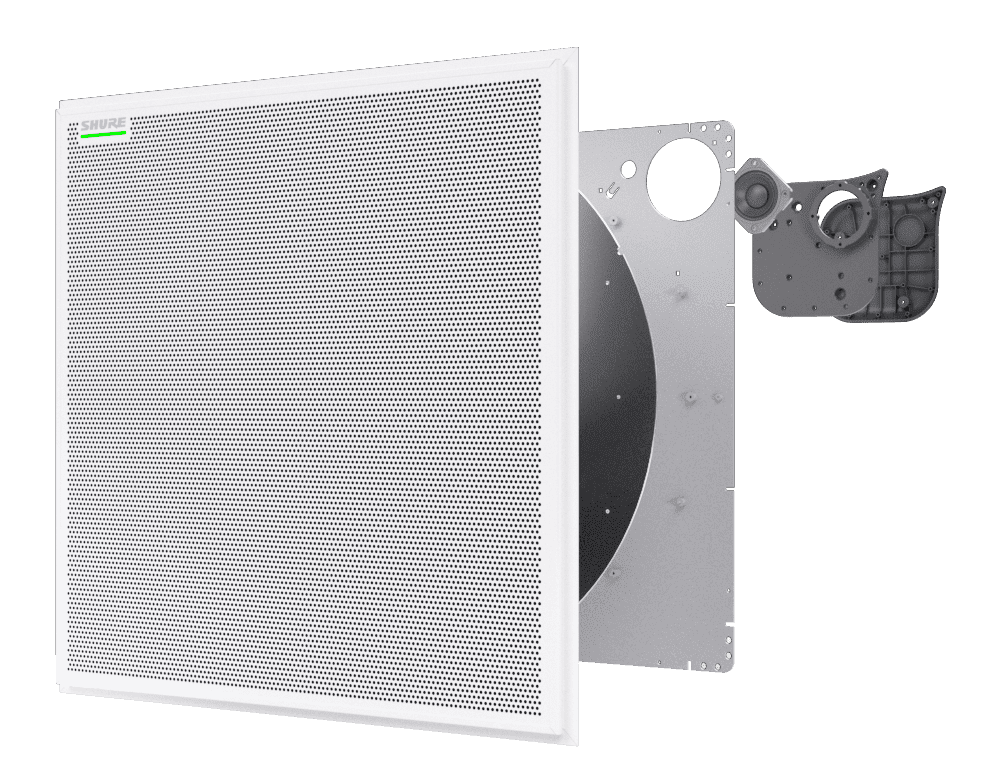

The first integrated ceiling array microphone and loudspeaker for AV conferencing in small & medium spaces. Includes an advanced array microphone, wide-dispersion loudspeaker and powerful signal processing combined into one unit for premium sound capture & reproduction.

COVERAGE WHERE YOU WANT IT:

Single Zone Automatic Coverage™ technology captures every talker in a 20 by 20 foot (6 by 6 meter) area while avoiding conversations and noises from other areas.

FITS YOUR ROOM DESIGN:

Square form factor available in 2 ft or 60 cm sizes with paintable white finish to meet the architectural needs of today’s meeting spaces.

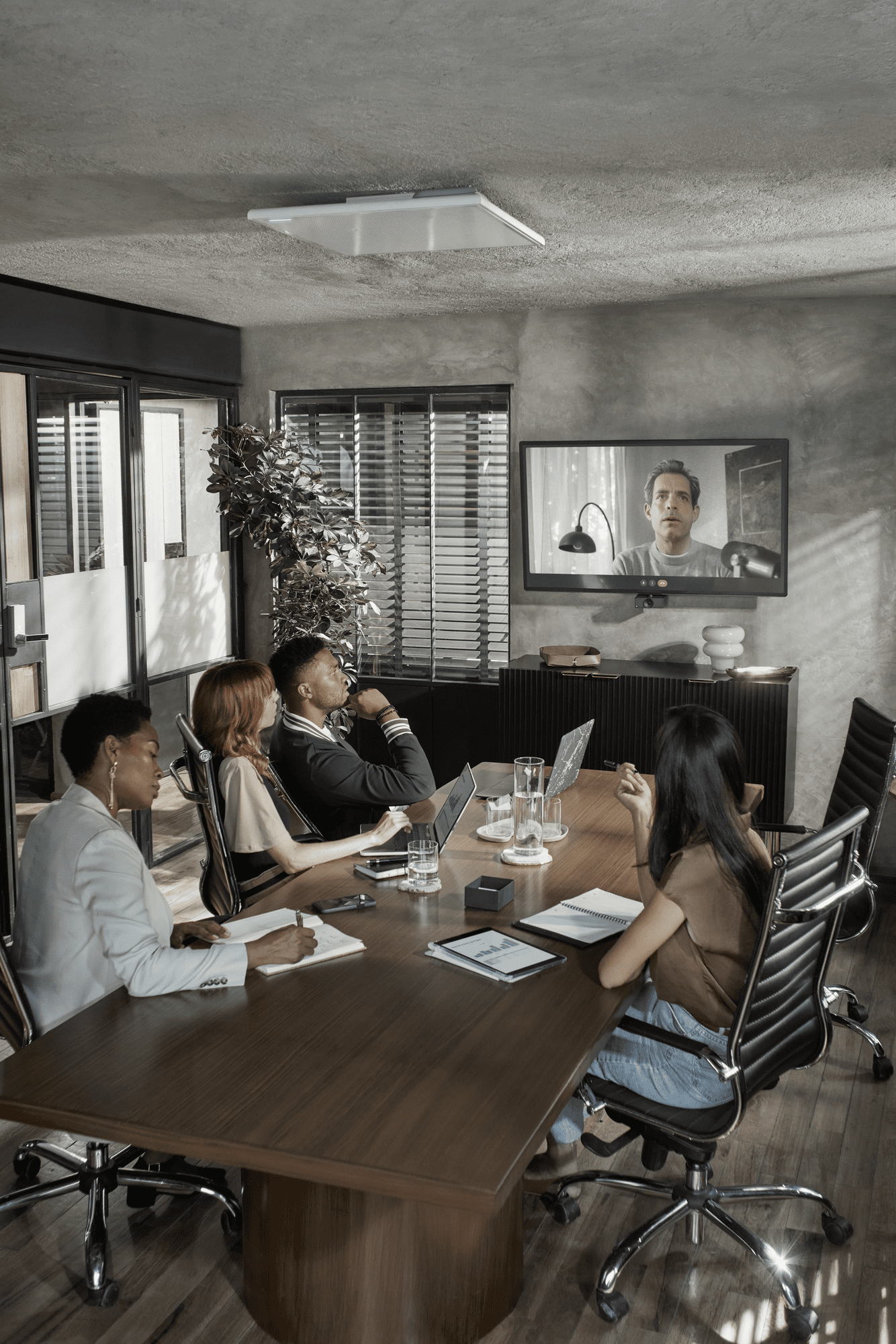

MXA902 in a medium-sized conference room

SEAMLESS INTEGRATION:

Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality.
Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.

MXA920 Ceiling Array: Now Pristine Audio is Automatic

COVERAGE WHERE YOU WANT IT:

Automatic Coverage^TM technology captures up to a 30 x 30 foot (9 x 9 m) area automatically for great sound out of the box.
You can also place coverage areas in specific locations to limit audio capture to seating areas, a podium, or whiteboard.

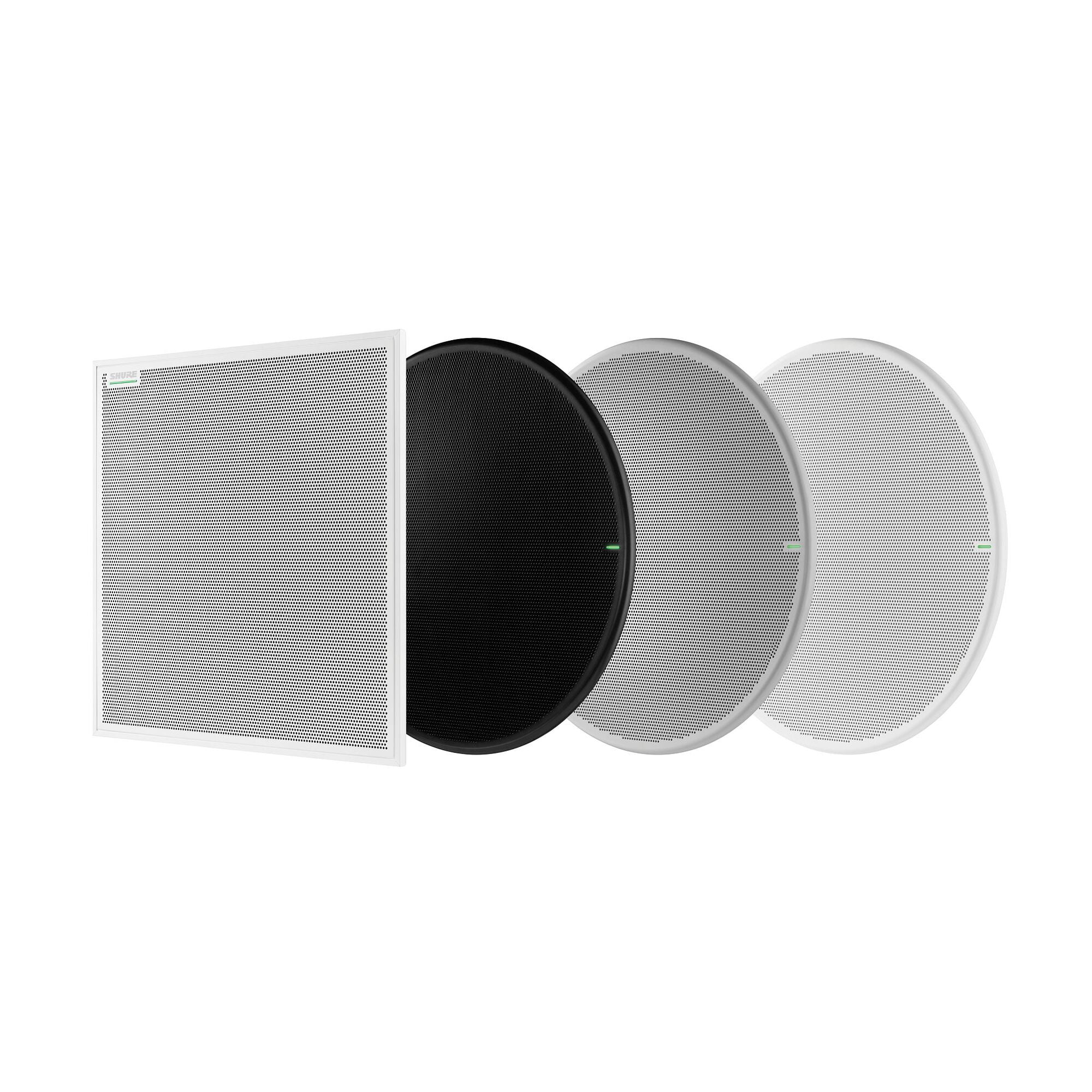

FITS YOUR ROOM DESIGN:

Square or round form factors suit your interior design. Choose white, black, or aluminum finish (square available in white only), or paint to match room aesthetics.

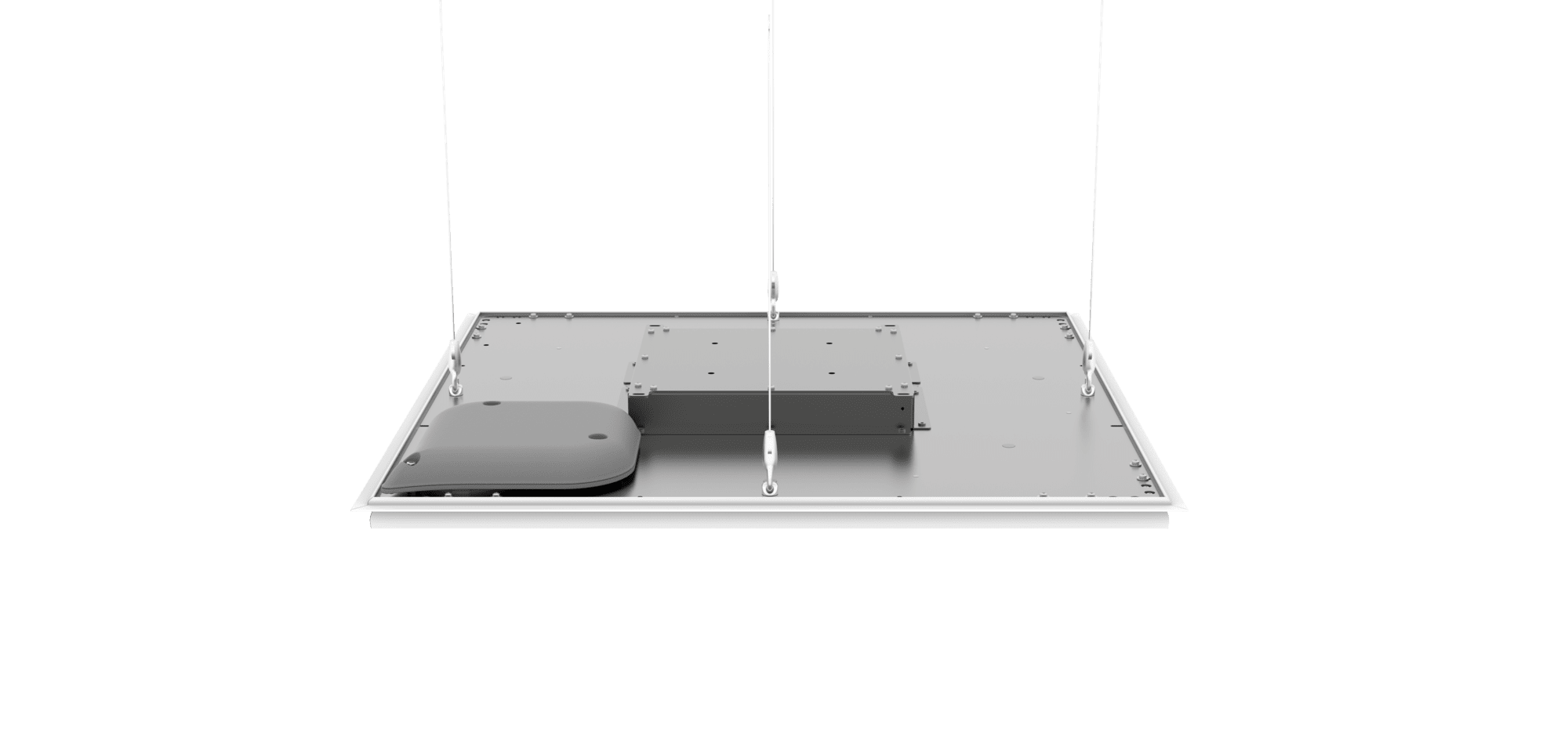

Versatile hardware options support in-ceiling, on-ceiling, pole, or wire-rope mounting.

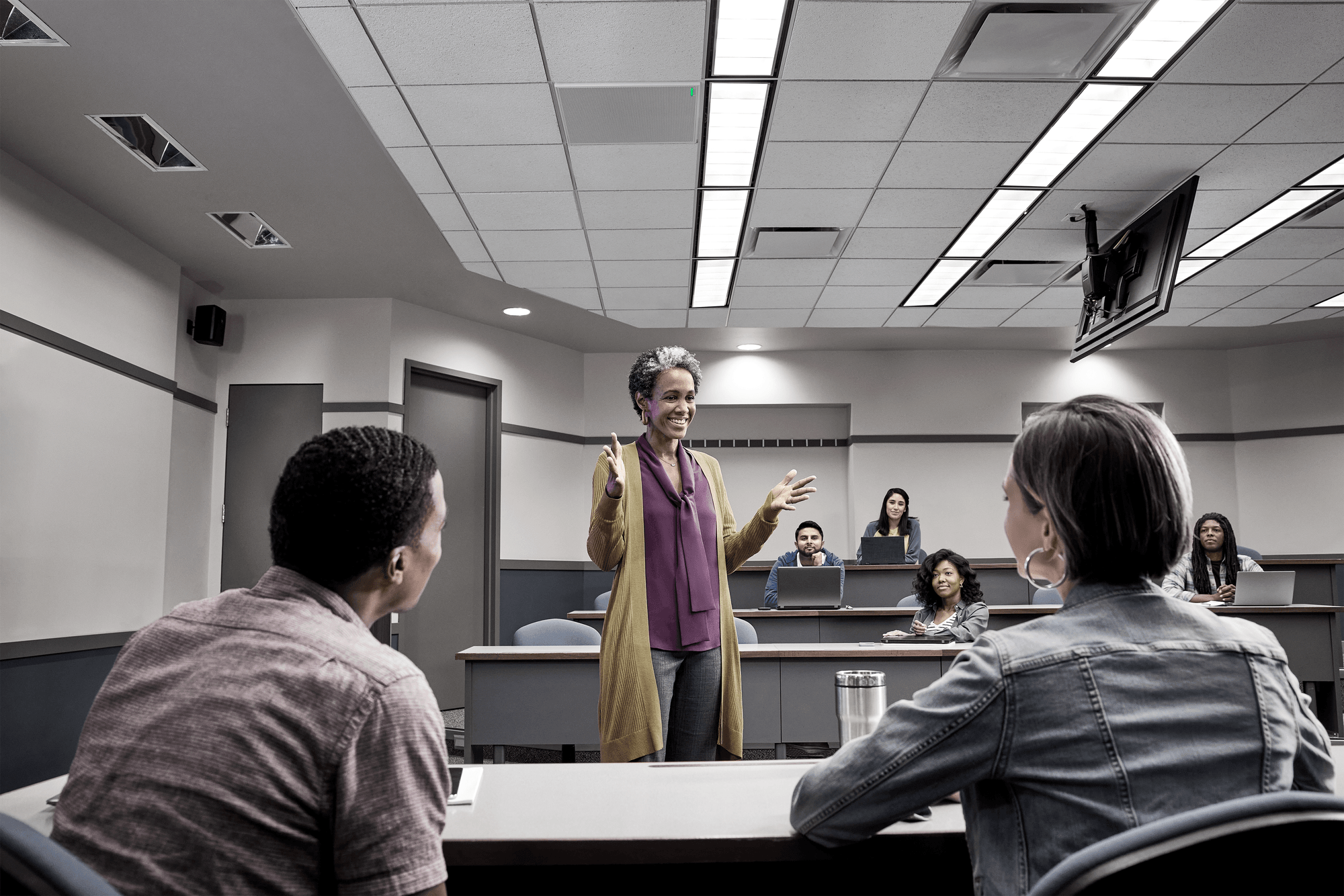

MXA920 Square in a classroom

SEAMLESS INTEGRATION:

Next-generation array architecture delivers more directional pickup at low frequencies for more natural sounding voice.
Onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction, and automatic gain control provides a pristine audio mix.

READY FOR ANYTHING

Camera Tracking: Precise talker localization reports the position of simultaneous talkers for more accurate camera tracking
Voice Lift: Highly directional pickup allows audience members across the room to interact without the need for roving microphones.
Sound Reinforcement: Precise coverage control enables presenters to be amplified without lavalier or gooseneck microphones.

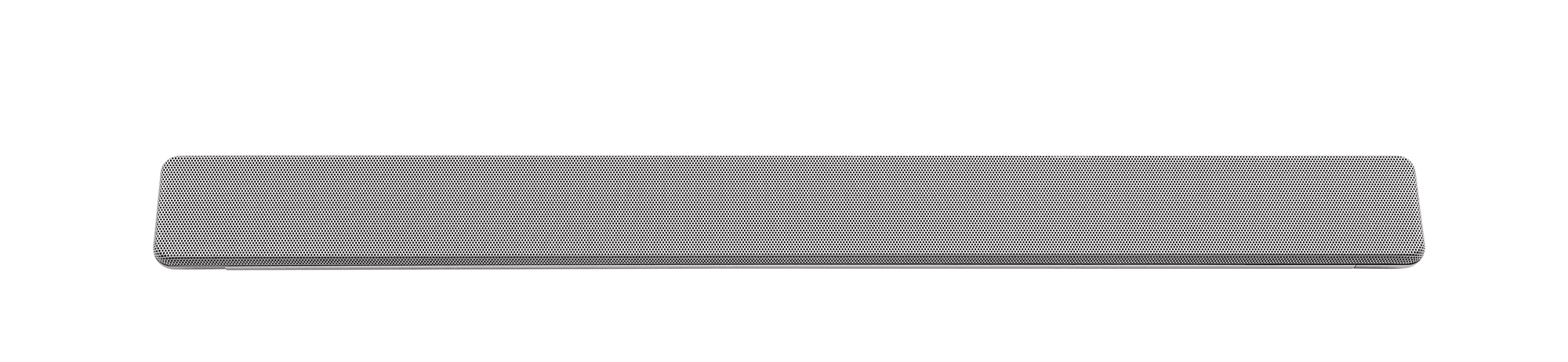

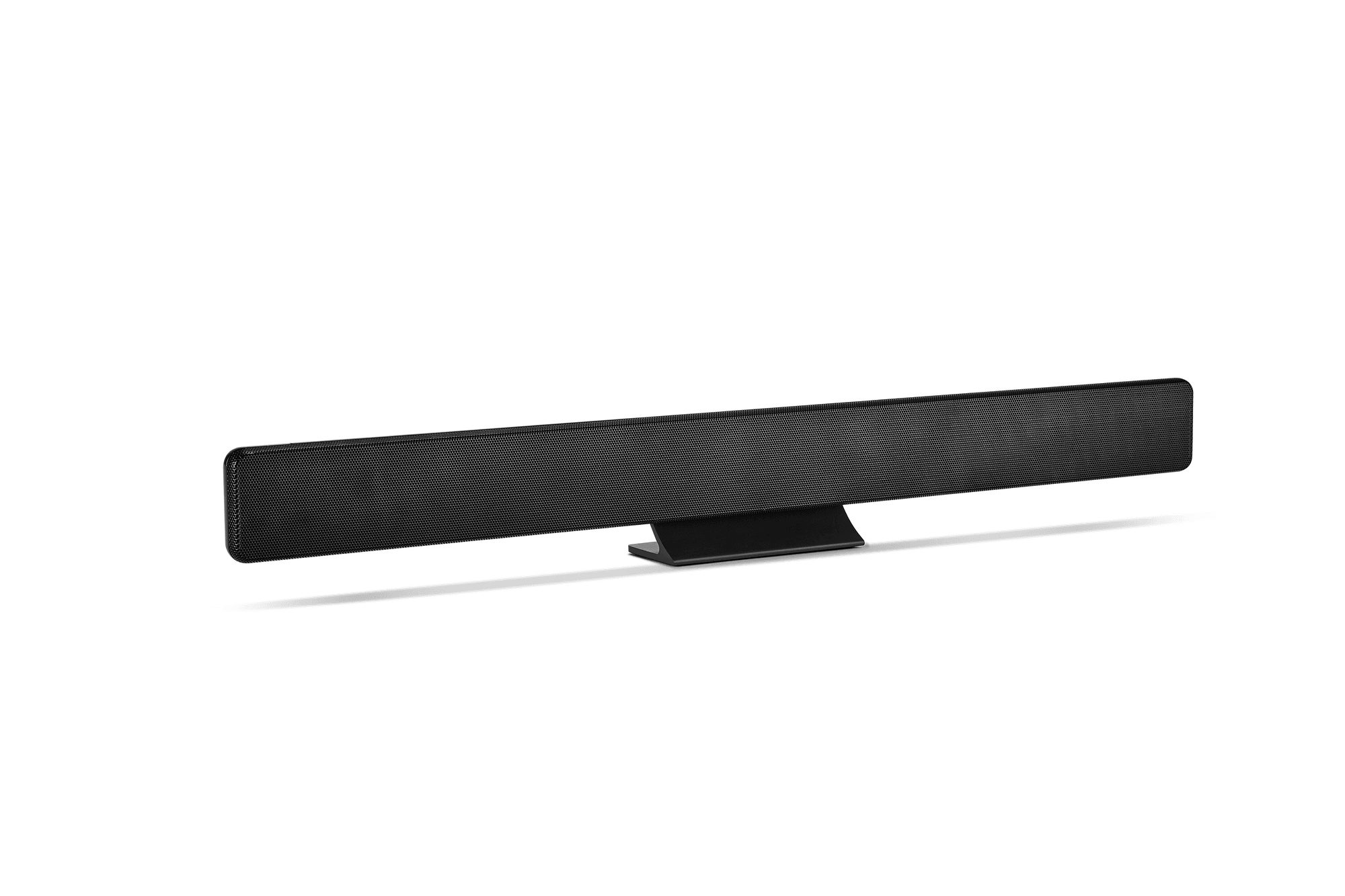

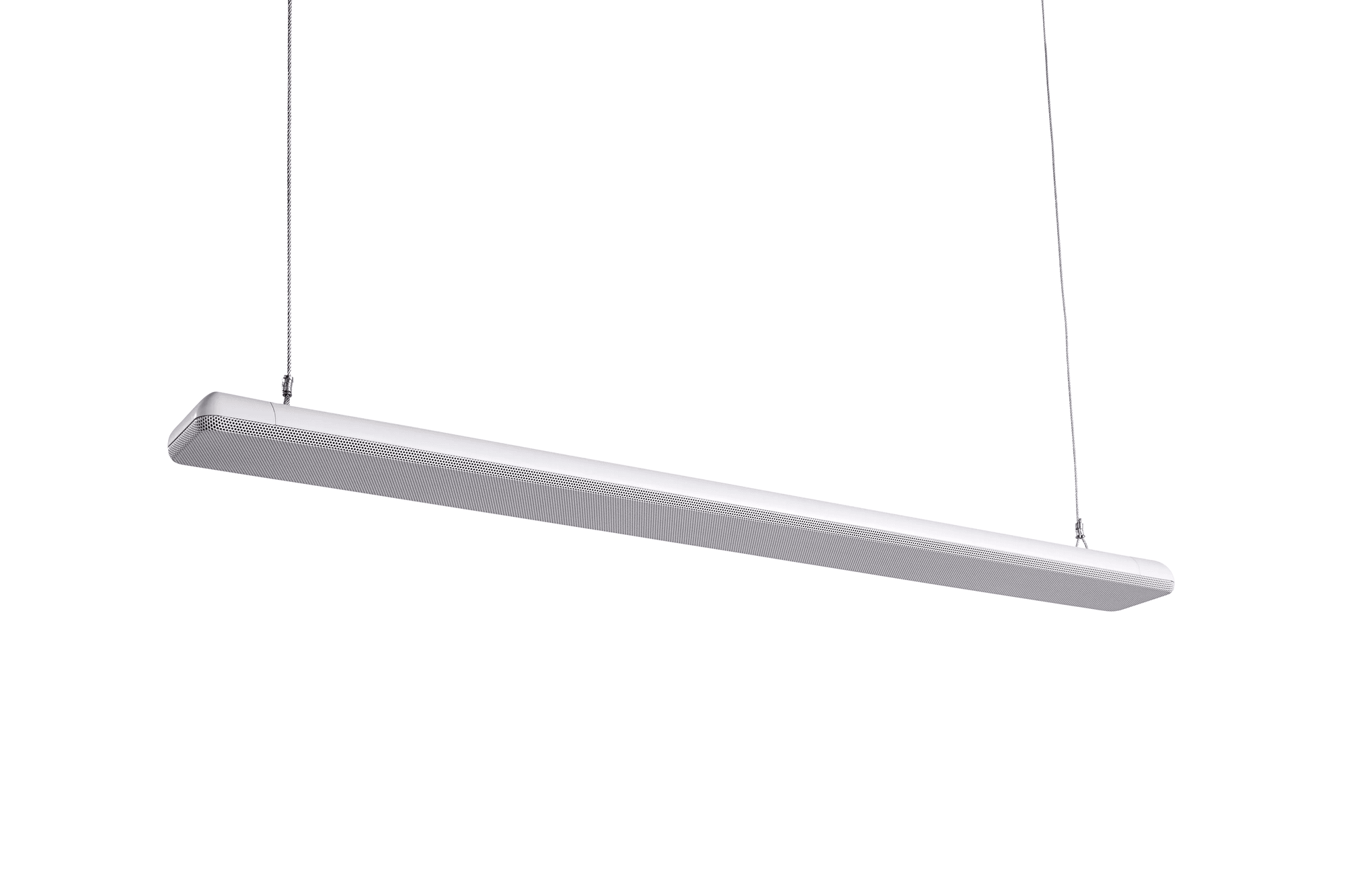

MXA710 Linear Array: THE ALTERNATIVE for limited spaces

COVERAGE WHERE YOU WANT IT:

Steerable Coverage^TM technology allows you to configure 4 or 8 pickup lobes that can be easily adjusted to capture talkers around the room.
Patent-pending Autofocus™ technology fine-tunes audio pickup in real time, for consistent sound even if participants shift in their seats.

SEAMLESS INTEGRATION:

Onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction, and automatic gain control provides a pristine audio mix.
Programming-free LED mute sync with popular software codecs when connected to IntelliMix P300 or ANIUSB-MATRIX.

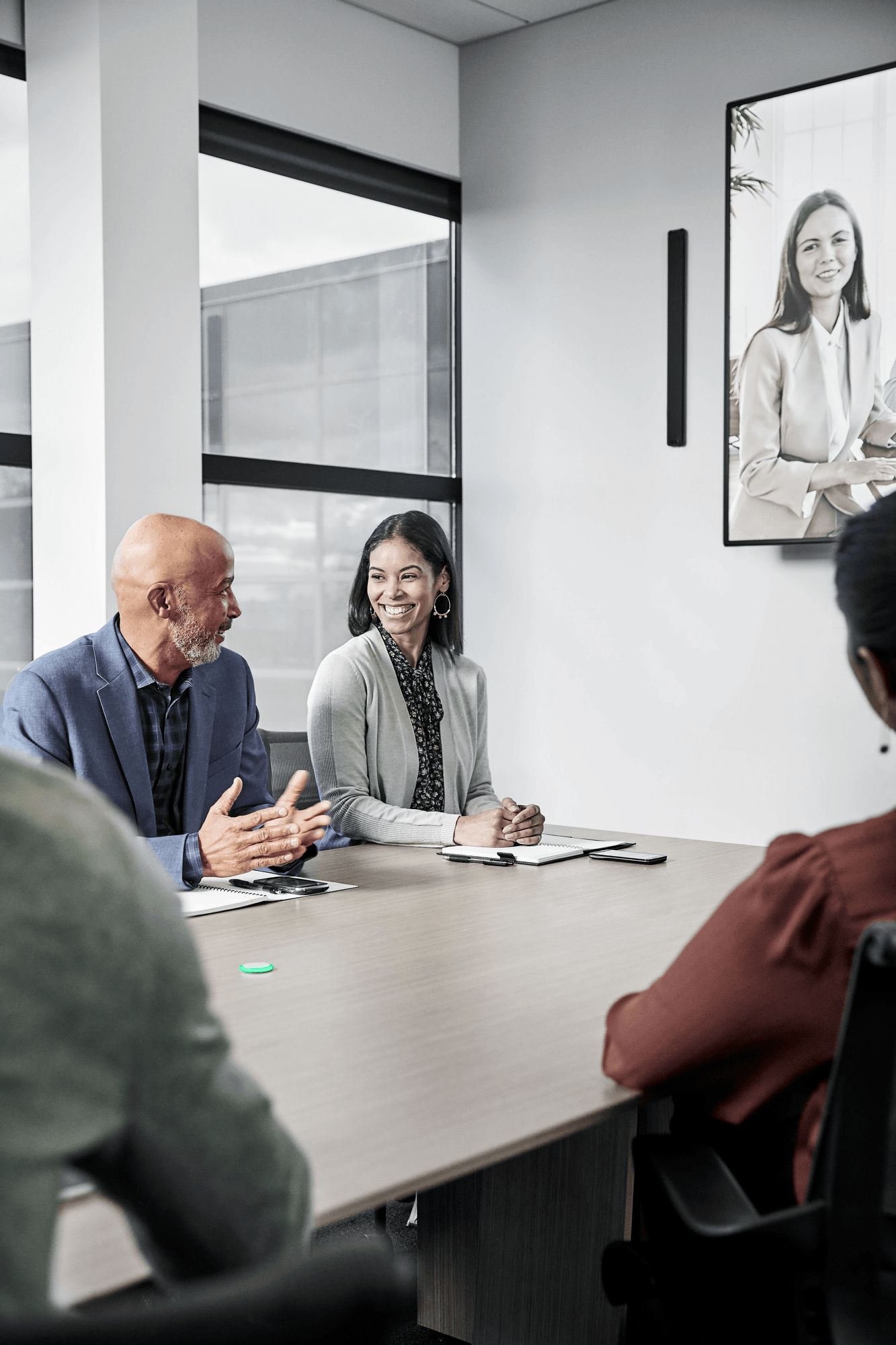

MXA710 Wall Mounted

FITS YOUR ROOM DESIGN:

Sleek linear form factor allows for placement virtually anywhere — on the ceiling or wall, around a display, or recessed into the table.
Choose white, black, or aluminum finish. Wall mounting bracket included (other mounting options available).

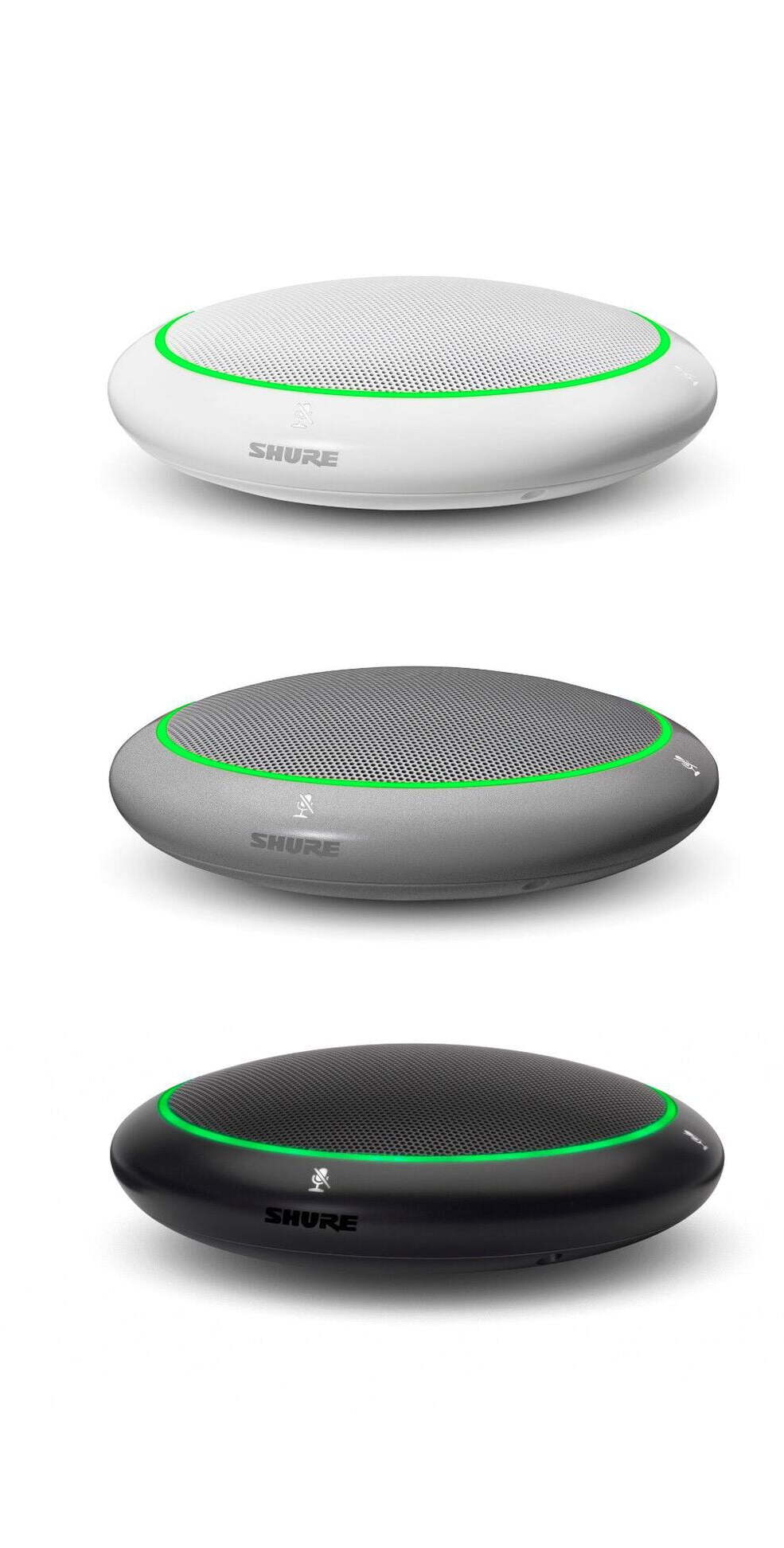

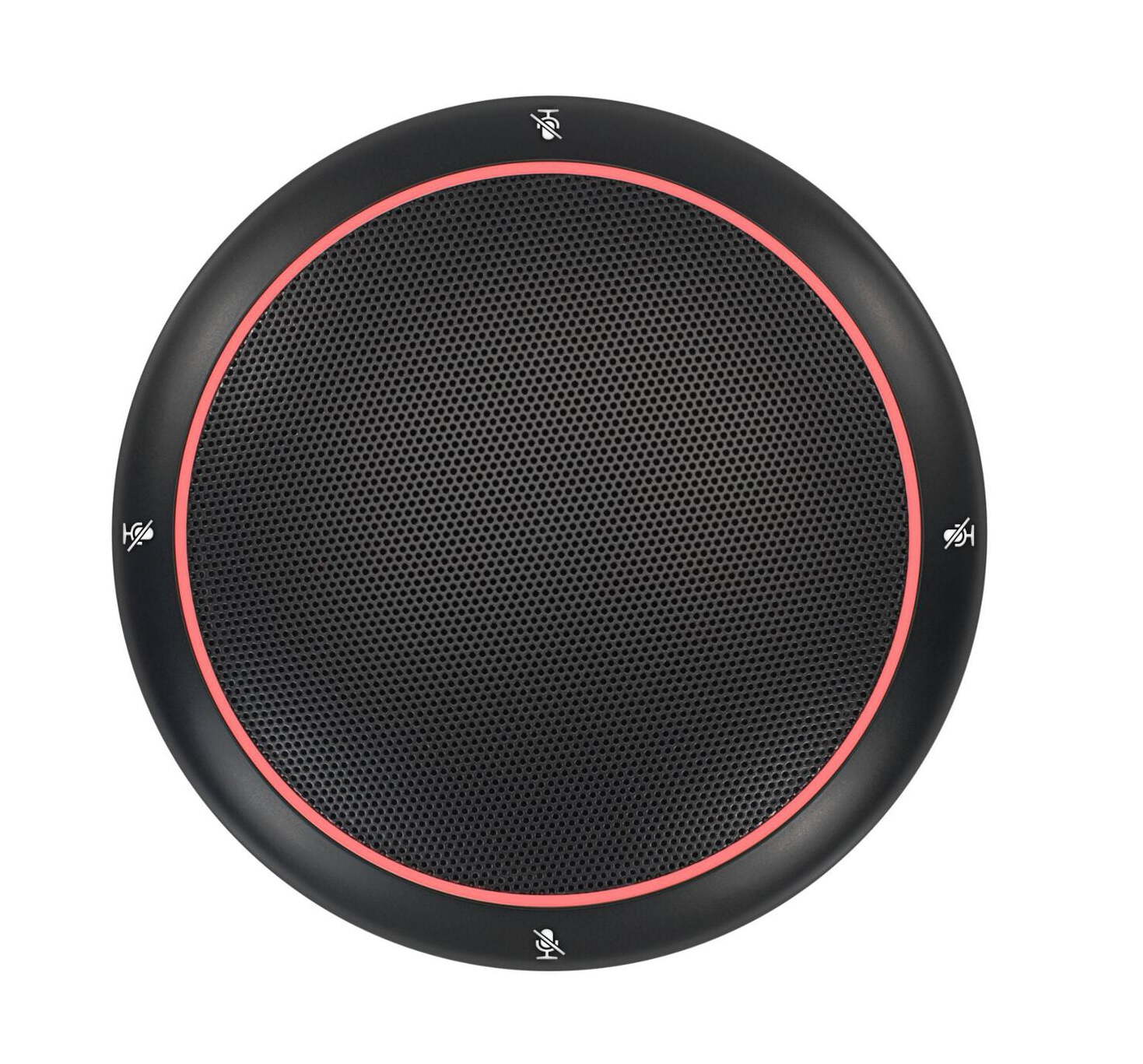

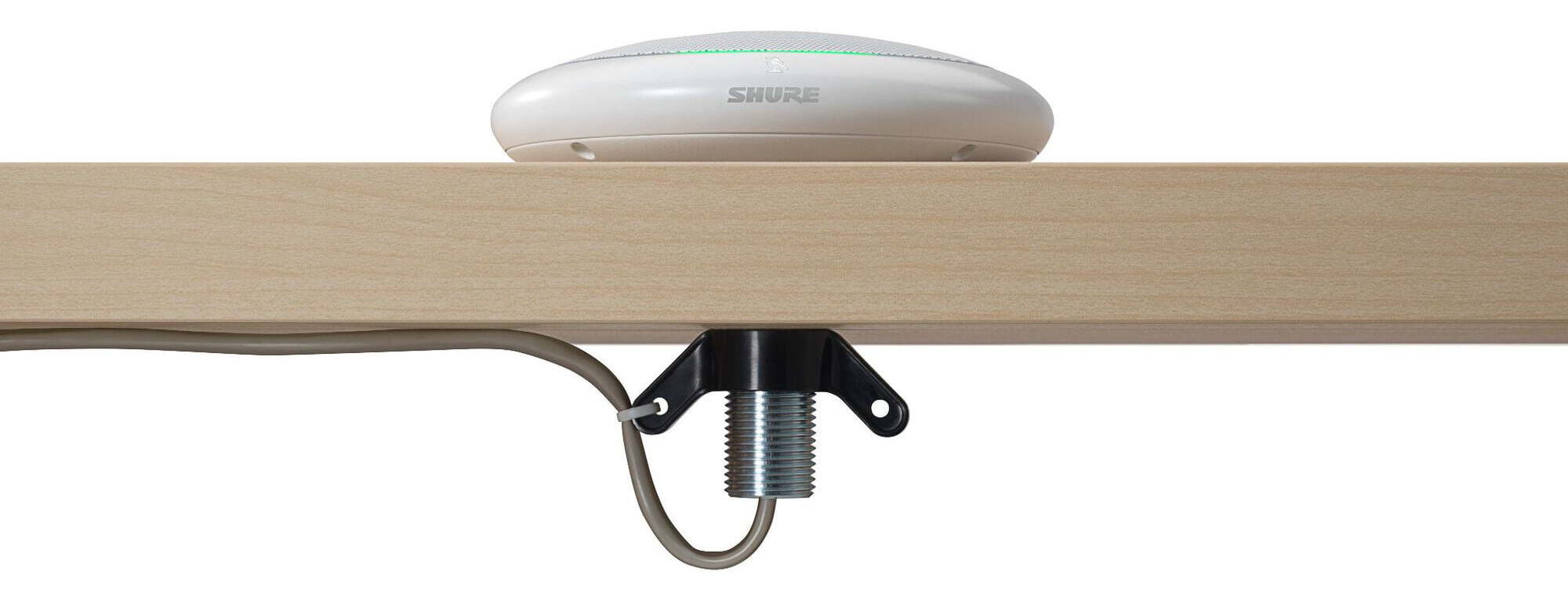

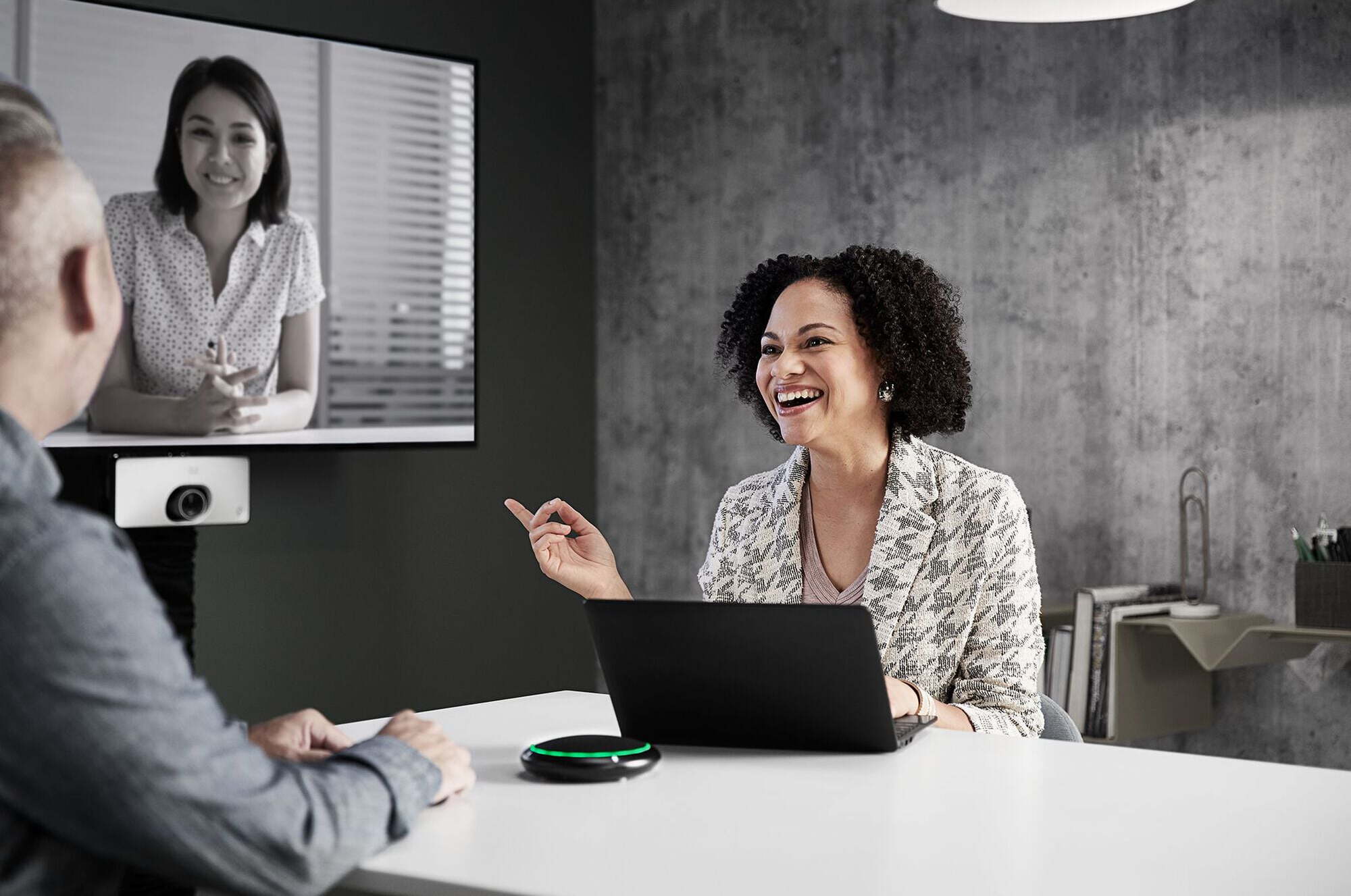

MXA310 TABLE ARRAY: PREMIUM SOUND WITHIN YOUR REACH

COVERAGE WHERE YOU WANT IT:

Steerable Coverage technology allows you to configure 4 polar patterns to capture talkers around the table.
Unique toroid pattern picks up a 360-degree circle but rejects sound from overhead noise.

NATURAL SOUND:

Integrated automix output improves clarity by activating only mics being addressed.
Per-channel parametric EQ reduces noise pickup in rooms with poor acoustics.

FITS YOUR ROOM DESIGN:

Programmable touch sensitive mute buttons can control one mic, all mics, or external devices.
Discreet design with side or bottom cable exit installs on top of table or flush-mounted.

INTELLIMIX P300 Audio Conferencing Processor

TAKE CONTROL OF MEETING AUDIO

Don’t let echo, noise, or distortion disrupt the meeting. The IntelliMix® P300 delivers clear sound reproduction and intelligent mixing that keep the agenda on track.

DANTE ONBOARD: Once the PC has IntelliMix Room onboard, it has Dante audio networking too. No other software license is needed to route audio to or from that PC.

The IntelliMix P300 delivers powerful DSP for echo- and noise-free conference room audio. Versatile connectivity options accommodate room video systems, laptops and mobile devices, with a compact form factor that hides under the table or behind the screen.

ELIMINATE DISTRACTING SOUNDS: Includes the AI Denoiser audio processor - a powerful algorithm that eliminates the random noises that disrupt meetings, with virtually no audible effect on the speech.

Dante Domain Manager / Device Lock compatible
Discretely mounts underneath a table or behind a display
Versatile connectivity and powerful DSP for AV conferencing
Easily setup and deploy settings with Designer System Configuration Software
Monitor and manage with SystemOn Audio Asset Management software
PoE+ powered eliminates the need for an outboard power supply

NO COMPLICATED AUDIO ROUTING: IntelliMix Room installs with its own audio driver. Once selected from the Audio Device dropdown in the Soft Codec of choice, the client is ready to talk.

ENTERPRISE-WIDE LICENSING: A centrally managed license lets clients easily and effectively deploy the software through their global corporate network.

PUT A STOP TO EAVESDROP: All connected Shure devices feature Shure Audio Encryption, so the only ones to hear it are the ones on the call.

INTELLIMIX^® ROOM Audio processing software

AV THAT SPEAKS IT

THE HARDWARE’S ALREADY THERE: IntelliMix® Room effectively turns the in-room PC into a Shure device. All configuration is managed in our Designer software and replicable through easy-to-use templates. With IntelliMix Room 4.0, download and trial the software immediately for free and skip the long wait times with new Room Set-Up.

DANTE ONBOARD: Once the PC has IntelliMix Room onboard, it has Dante audio networking too. No other software license is needed to route audio to or from that PC.

NO COMPLICATED AUDIO ROUTING: IntelliMix Room installs with its own audio driver. Once selected from the Audio Device dropdown in the Soft Codec of choice, the client is ready to talk.

ENTERPRISE-WIDE LICENSING: A centrally managed license lets clients easily and effectively deploy the software through their global corporate network.

PUT A STOP TO EAVESDROP: All connected Shure devices feature Shure Audio Encryption, so the only ones to hear it are the ones on the call.

IntelliMix® Room, the first audio processing software fully optimized for Shure conferencing microphones. No custom setups or special hardware needed to enjoy crystal-clear audio on all video conference calls. Bring conferencing into the future.

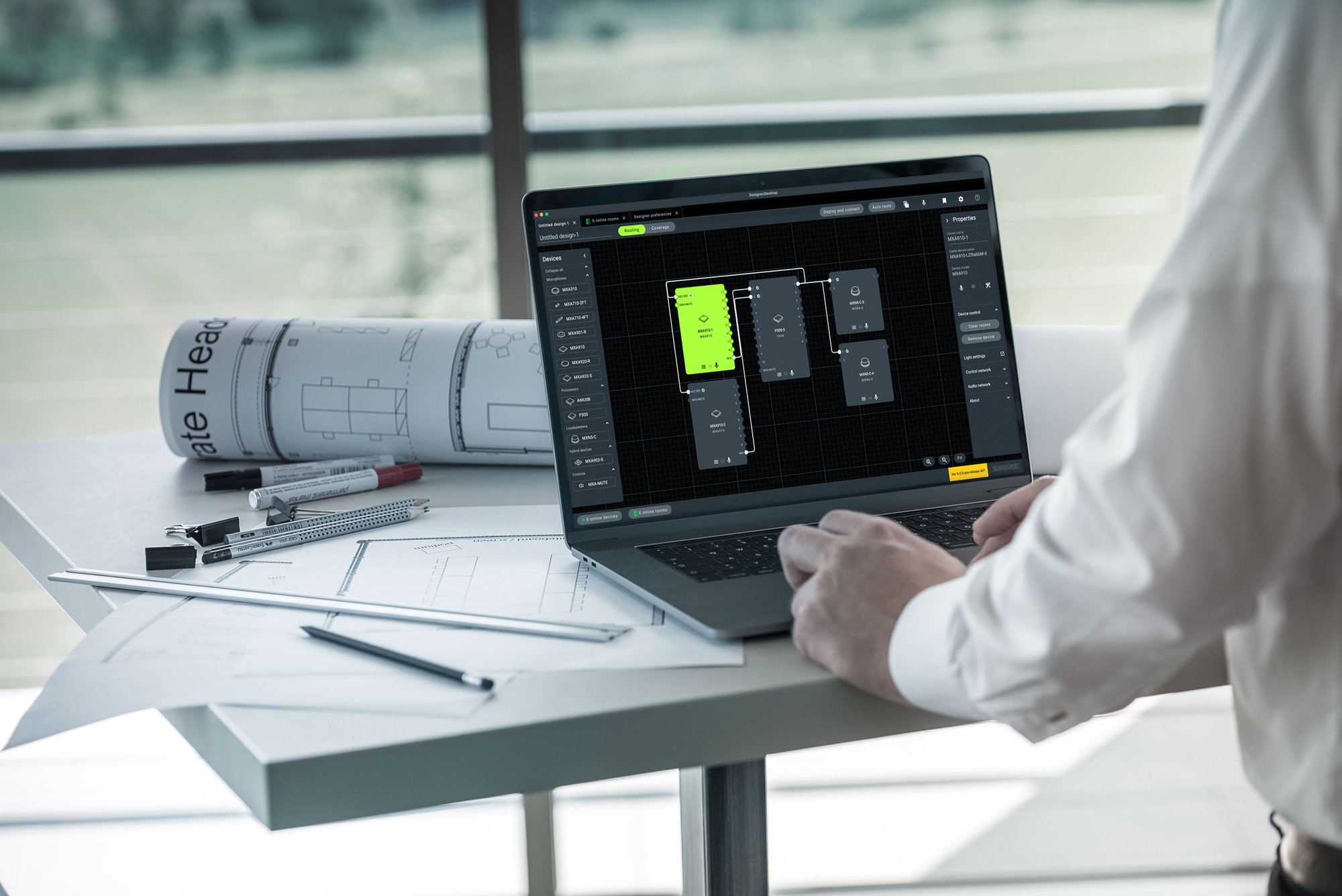

DESIGNER SYSTEM CONFIGURATION Software

Enable Next Generation Audio

Designer System Configuration Software enables integrators and system planners to design, deploy and seamlessly commission installations of Microflex® Ecosystem devices. Completely reimagined and redesigned to simplify end-to-end workflows and enable intuitive layouts, Shure Designer 6 is effective application software designed to streamline operational efficiency.

INTUITIVE WORKFLOW: Designer allows online and offline design, routing, configuration, and push to online devices, all in one tool.
PASS IT ON: Room configurations can be saved and shared with colleagues
SEAMLESS ROUTING: Single hub for Dante™ routing
SINGLE HUB: Firmware updating and Dante™ audio routing

Designer makes audio implementation for you, the AV Professional, faster, simpler, and more intuitive. With the details managed, it becomes a seamless experience.

System API^® Control & Monitoring

Application programming interface for controlling & monitoring a wide variety of product features and performance parameters for Shure devices – whether on premises or remotely. SystemAPI’s open architecture allows integration with 3rd party devices and platforms to enable comprehensive and customizable system management.

RESTFUL API: Highly scalable and interactive with other control and monitoring systems that are already in use across enterprise applications.
COMPREHENSIVE MONITOR & CONTROL CAPABILITIES: Increased number of endpoints for network monitoring including device control, maintenance, and firmware updates.
STREAMLINED SET-UP & SCALABILITY: Ease & speed of install enables savings on deployment efforts, time on-premises, and resources.
REMOTE MANAGEMENT: Access, control, and monitor your devices remotely using WebSockets and Virtual Machines.
ENHANCED NETWORK SECURITY: via HTTPS, 802.1x, and SRP that ensure robust network security protocols across an enterprise.
EASY TO LEARN: For those with minimal to no API experience via Stoplight.io and Stack overflow.

Bundles & integrations

The Benefits of A Bundle

AUDIO PERFORMANCE: Enhanced meeting room audio for natural communication and better interaction in AV conferences with remote team members.

INTUITIVE CONNECTIONS: Industry-first mute sync functionality when MXA microphones are connected to the P300 for better operation with leading third-party software codecs.

SIMPLICITY: Pre-defined templates for system configuration reduce programming time and allow installation within seconds.

SHURE AUDIO ENCRYPTION: When using Microflex Advance together with the IntelliMix P300 Audio Conferencing Processor and selected Shure Audio Network Interfaces, Shure Audio Encryption with AES-256 encryption technology can help protect confidential content.

Build Your Own Bundle

Endlessly flexible, for the most demanding spaces. From microphones to DSPs to loudspeakers, the Shure Microflex Ecosystem offers a complete portfolio of networked audio solutions that can be precisely tailored to your needs, for best in-class collaboration experiences in any room.
